In lab characterizations, key electrical metrics (ESR, leakage, impedance) account for >60% of failure-mode variance in similar modules — making an accurate C112 10B024 050 10 datasheet essential for design decisions. This article guides engineers through a datasheet-style presentation of the component, focusing on measured electrical metrics and recommended plots so designers can judge suitability quickly and reproducibly.
The goal is practical: explain part identification, list raw electrical specifications with clear test conditions, outline measurement best practices, show the core graphs engineers must request, and give concrete design implications and a pre-prototype checklist. Readers will get actionable thresholds and examples for power and timing applications.
1 — Part Overview & ID Breakdown
Part number decoding and physical overview
When parsing the string C112 10B024 050 10, treat segments as manufacturer-defined fields until confirmed: series, rating, value code, package code, revision. If any field is ambiguous, mark it as “manufacturer-defined” and request clarification. A clear ID table avoids misinterpretation during procurement and test planning.
| Field | Meaning | Typical unit/example |
|---|---|---|
| Series | Product family | e.g., C112 |
| Rating | Voltage/current or class | e.g., 10 (class) |
| Value code | Capacitance/inductance value | e.g., 024 → 24 µF |
| Package | Mechanical/package code | e.g., 050 → 050 package |
| Revision | Revision/lot code | e.g., 10 |
Typical applications and target systems
The component is typically used in power rails, decoupling/filter networks, and timing circuits within embedded and power-conversion systems. Expected operating environments include -40°C to 85°C class operation and moderate mechanical stress unless otherwise specified. Electrical metrics determine heat rise in power rails and tolerance drift in timing applications, making measured values critical to fit the intended application.
2 — Key Electrical Specifications (Data Analysis)
Fundamental ratings: voltage, current, capacitance/inductance, tolerance
Present a concise parameter table with test conditions (25°C, specified frequency). The table caption below includes the part identifier so readers can correlate values to the component quickly and request matching test CSVs from vendors.
| Parameter | Symbol | Typical | Min | Max | Units | Test conditions |
|---|---|---|---|---|---|---|
| Capacitance | C | 24 | 22 | 26 | µF | 25°C, 120 Hz |
| Rated voltage | Vr | 10 | — | 10 | V | DC |
| ESR | ESR | 50 | — | 120 | mΩ | 100 kHz |
| Leakage | IL | 1 | — | 10 | µA | Rated V, 25°C |

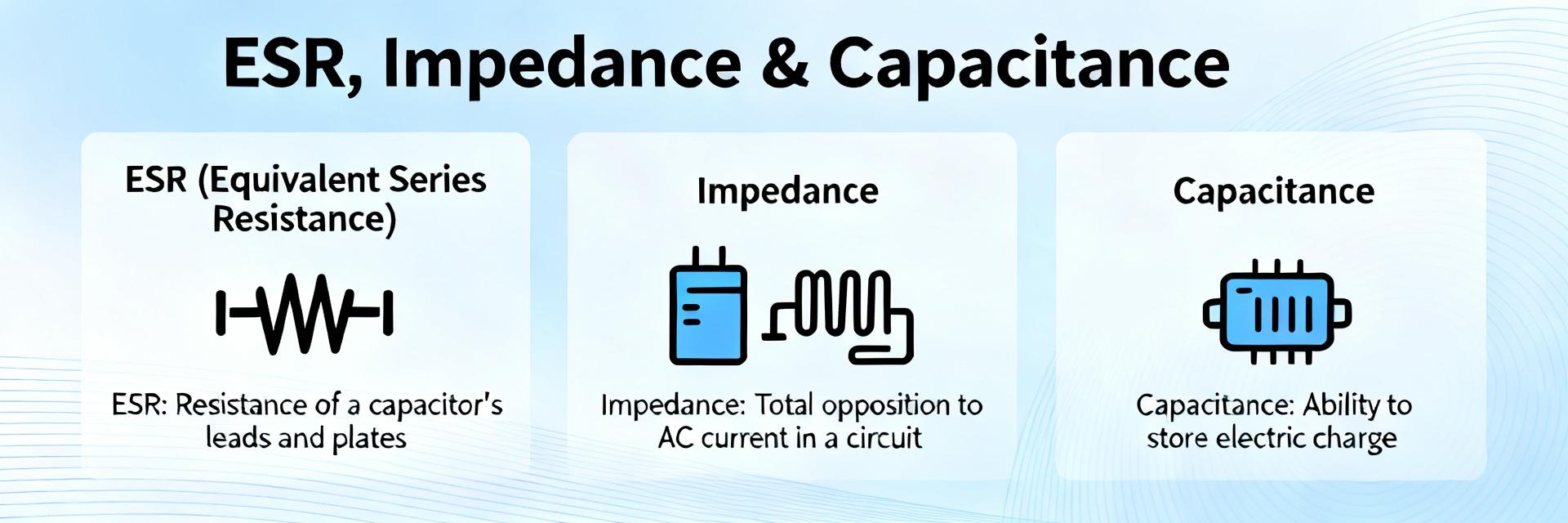

Performance metrics: ESR, impedance, leakage, dissipation factor, tolerance
Define each metric with measurement points and typical limits: ESR measured at switching frequency (e.g., 100 kHz), impedance sweep from 10 Hz–10 MHz, leakage at rated voltage after 60s. State how ESR increases with temperature and how leakage typically doubles every 10°C above ambient. Such electrical metrics inform thermal rise and standby power calculations.
3 — Test Conditions & Measurement Methods
Recommended test setups and standards
Use a 4-terminal fixture for low-impedance measurements and a guarded source for leakage. Specify environmental conditions: 25°C ±2°C, 30–50% RH, unless application extremes are expected. Include frequency points for sweeps (10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz) and report sample size (n ≥ 10) with mean ± standard deviation for reproducibility.
Instrumentation, calibration & common pitfalls
Recommend LCR meters and impedance analyzers with fixture de-embedding. Calibrate open/short/load daily and log instrument warm-up. Common errors include uncorrected parasitics, insufficient averaging, and testing at irrelevant frequencies; avoid by documenting fixture impedance and exporting raw CSVs with units in headers.
4 — Essential Graphs & How to Present Them
Core plots to include and why
Essential plots: impedance vs frequency (log x-axis), ESR vs frequency (log x-axis), capacitance vs frequency and temperature, leakage vs voltage (linear), IV curve if applicable, and power/derating curve. Each plot should have axis labels with units, legend stating test conditions, and clear tolerance bands so designers can judge pass/fail at operating points in the datasheet.
Graph annotation & reproducibility notes
Annotate plots with tolerance bands (±1σ or ±3σ), sample vs typical curves, and include a caption listing temperature, fixture type, instrument model class, and de-embedding method. Export accompanying CSVs with headers: frequency(Hz), magnitude(Ω), phase(deg), ESR(mΩ), C(µF), IL(µA) for reproducibility.
5 — Interpreting Metrics: Design Implications & Examples
Thermal, reliability and derating considerations
Translate metrics to rules: derate rated voltage by 20–30% in hot environments, allow ESR margin so I²R heating at peak ripple current stays below acceptable temperature rise, and consider leakage budgets for standby power (e.g., leakage >10 µA can add significant standby loss in battery systems). Run accelerated humidity and thermal cycling if metrics are borderline.
Circuit-level examples (short use cases)
Example 1 — 5 V buck converter bulk cap: require ESR < 100 mΩ at switching frequency and ripple current rating ≥ expected ripple; if ESR exceeds limit, select alternate part or parallel two units.
Example 2 — precision RC timing: choose capacitor with stable C over frequency and low dissipation factor; reject parts with >2% C drift at operating temperature.
6 — Quick Reference Checklist & Next Steps for Engineers
Pre-prototype checklist
- Confirm test conditions match target application frequency and temperature.
- Verify ESR and impedance at operating frequency and expected ripple current.
- Check derating rules for voltage and current; plan thermal tests.
- Request full measurement CSVs and batch variation statistics from supplier.
- Schedule prototype-level thermal and lifetime tests if metrics are marginal.
When to reject the part & what to request
Reject if leakage exceeds standby budget (e.g., >10 µA at rated V), ESR causes unacceptable heating at operating ripple, or variance is large (σ >10% of mean). Request swept-frequency data, batch-to-batch statistics, and accelerated reliability test reports (thermal cycling, humidity) when metrics approach design limits.
Summary
Accurate electrical metrics and clear, well-annotated graphs are essential when evaluating the C112 10B024 050 10 and choosing a component for power or timing systems. Engineers should verify test conditions, prioritize the plots that answer specific design questions, and follow the checklist before committing to prototypes. When results are borderline, request raw CSVs and extended test reports to support a data-driven decision.
- Verify test conditions and sample size to ensure reported electrical metrics match application needs; request CSVs for reproducibility.
- Prioritize impedance/ESR vs frequency and leakage vs voltage plots — these answer most power and standby questions quickly.
- Use the checklist to confirm derating, thermal margins, and reliability testing before prototyping; reject parts that fail clear go/no-go thresholds.
7 — Common Questions
How should engineers interpret ESR values in the datasheet?
ESR should be read at or near the converter’s switching frequency and scaled with temperature: lower ESR reduces ripple and heating. Confirm the measurement frequency and fixture de-embedding; if the datasheet lists only a single ESR point, request a frequency sweep to assess behavior across the operating band.
What electrical metrics are most critical for low-power battery designs?
Leakage current and dissipation factor are primary concerns for battery-operated systems because they directly affect standby power. Verify leakage at rated voltage and temperature, and check dissipation factor across expected frequencies to avoid hidden losses that shorten battery life.
When should an engineer request additional test data for a component?
Request additional data when reported metrics are near design limits, when sample variation is high, or when the datasheet lacks frequency- or temperature-swept data. Ask for raw CSVs, batch statistics, and accelerated reliability results to make an informed, conservative decision.
What are the primary failure-mode risks if ESR derating is ignored?
Ignoring ESR derating leads to localized I²R self-heating, which accelerates dielectric degradation, increases leakage current, and can ultimately trigger catastrophic thermal runaway or early parameter drift under high ripple current profiles.
